Link with the Director

Network Access

The following ports should be accessible between the server that hosts BWeb and other Bacula Enterprise components. All protocols can use SSL/TLS or, for ssh access, are encrypted anyway.

Table 1: Network access
Component	Source	Destination	Default port
SQL (PostgreSQL)	BWeb	Catalog	5432/tcp
SQL (MySQL)	BWeb	Catalog	3306/tcp
Command Link	BWeb	Director	9101/tcp
Command Link (optional)	BWeb	Storage	22/tcp
Admin Web Access	Admin Workstation	BWeb	80,443/tcp

SQL Catalog Access

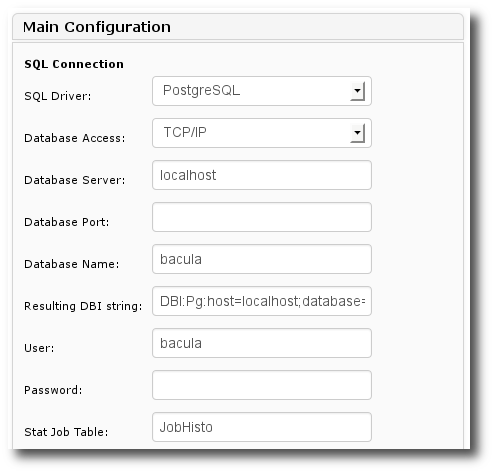

[sec:dbi] BWeb uses the Perl DBI layer to query Bacula’s catalog. You should configure the connection string in the bweb.conf file or in the web configuration panel (If your web server can modify the configuration file).

There is no standard for the text following the driver name. Each driver is free to use whatever syntax it wants. You must consult the documentation for the drivers you are using for a description of the syntax they require.

For example, if your PostgreSQL catalog baculaprod is accessible through the network on 192.168.1.2 port 5432/tcp, you will use:

DBI:Pg:database=baculaprod;host=192.168.1.2;port=5432

For a local MySQL catalog baculaprod, you will use:

DBI::mysql:database=baculaprod

Table 2: Typical DBI/DSN parameters
Parameters	Example	Informations
`database`	`database=bacula`	Database name
`host`	`host=bacula-dir`	SQL server name
`port`	`port=5432`	Port of the connection to the server
`sslmode`	`sslmode=require`	Use SSL for Postgres SQL connection
`mysql_ssl`	`mysql_ssl=1`	Use SSL for MySQL SQL connection

bconsole Configuration

BWeb communicates with the Director through bconsole. It requires that your web server has permission to execute the command and read the associated configuration file bconsole.conf. When using Bacula Systems default configuration, the web server is running as “bacula”, so everything should work out of the box.

When running BWeb through a custom apache configuration, the web server is running as “www-data” or “apache”. It means that in this configuration, Apache will not allow to communicate with Bacula without manual changes.

# cd /opt/bacula
# ls -l bin/bconsole etc/bconsole.conf
-rwxr-xr-x 1 root root 843227 2008-11-01 16:18 bin/bconsole
-rw-r----- 1 root bacula 171 2008-11-04 18:48 etc/bconsole.conf

If you don’t want to give this kind of permission, you can add the web server user to the bacula group or use a copy of the bconsole.conf file with restricted permissions.

# cp /opt/bacula/etc/bconsole.conf /opt/bacula/etc/bconsole-web.conf
# ls -l etc/bconsole.conf etc/bconsole-web.conf
-rw-rw---- 1 root bacula 171 2008-11-04 18:48 etc/bconsole.conf
-rw-r----- 1 root www-data 171 2008-11-04 18:48 etc/bconsole-web.conf

Note that we provide configuration files to run Apache or Lighttpd with the bacula Unix user. So, if the bacula user can read configuration files and execute binaries, BWeb should read them too.

Director Configuration

To be able to see Job logs in BWeb, you must add the catalog as a destination in all Messages resources. See the “catalog =” line below:

Messages {
 Name = Standard

 operator = root@localhost = mount
 console = all, !skipped, !saved
 append = "/opt/bacula/working/log" = all, !skipped

 catalog = all, !skipped, !saved
}
